Plant List

Advanced Machinery Enabling Complex Machining

Cardan Precision Engineering’s investment in state-of-the-art equipment ensures we can meet diverse project requirements with precision and efficiency. This versatile plant list supports our ability to manufacture a wide range of components to exacting standards.

Our facility includes:

CNC Turning Centres capable of high-precision, multi-axis machining
CNC Milling Machines for heavy duty roughing and complex finishing
CNC Wire and Spark Erosion Machines for intricate geometries and fine details
Material Sawing, Bead Blasting, and Zinc Phosphating equipment for preparation and finishing
Comprehensive Inspection and Quality Control apparatus to maintain strict tolerance compliance

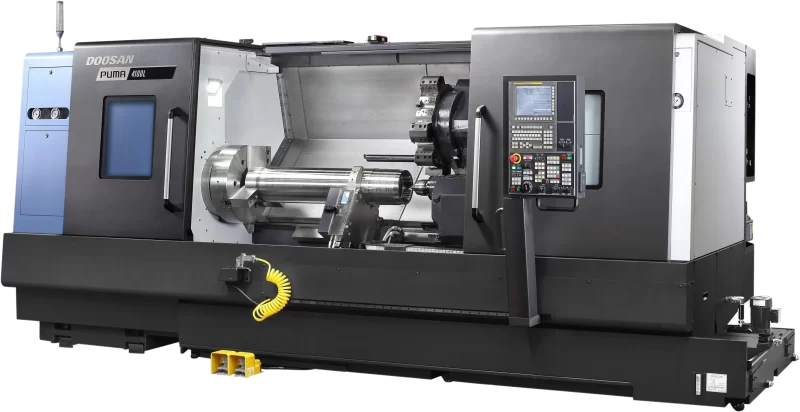

Puma 4100LMB

Doosan Puma 4100LMB Horizontal Single Turret Lathe.

Puma 4100LMB Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations	Rotary Tool
15 inch	116.5 mm	550 mm	2028 mm	16 / 20 m/min	352 / 2155 mm	2000	30 kW	1611 N·m	12	4000 rpm

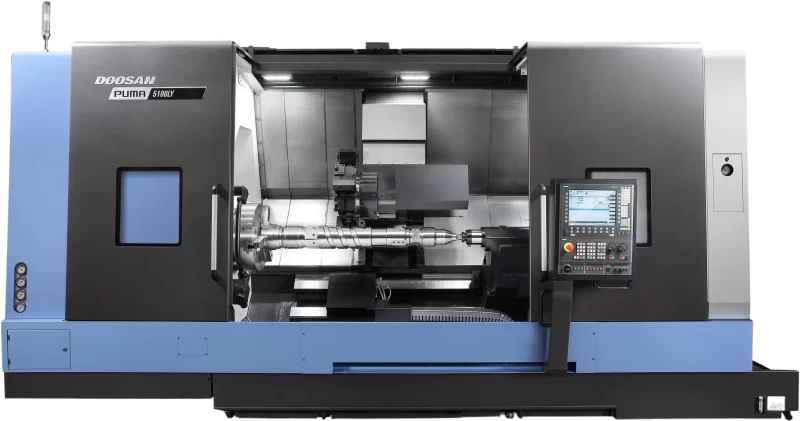

Puma 5100LB

Doosan Puma 5100LB Horizontal Single Turret Lathe

Puma 5100LB Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations
21 inch	165.5 mm	650 mm	2042 mm	16 / 20 m/min	362 / 2155 mm	1500 r/min	45 kW	4038 N·m	10

Puma 4100XLMB

Doosan Puma 4100XLMB Horizontal Single Turret Lathe

Puma 4100XLMB Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations	Rotary Tool
15 inch	116.5 mm	560 mm	3068 mm	16 / 20 m/min	352 / 3150 mm	2000 r/min	30 kW	1611 N·m	12	4000 r/min

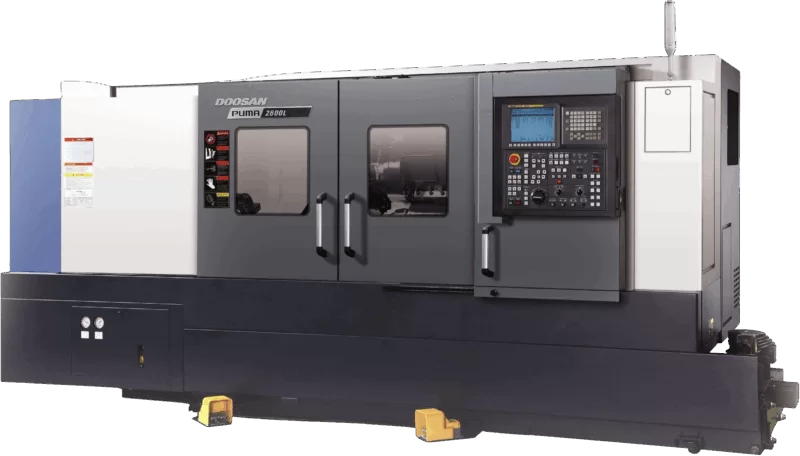

PUMA 2600L

Doosan Puma 2600L Horizontal Single Turret Lathe

Doosan Puma 2600L Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations
12 inch	81 mm	481 mm	1310 mm	30 / 30 m/min	260 / 1350 mm	3500 r/min	22 kW	327 N·m	12

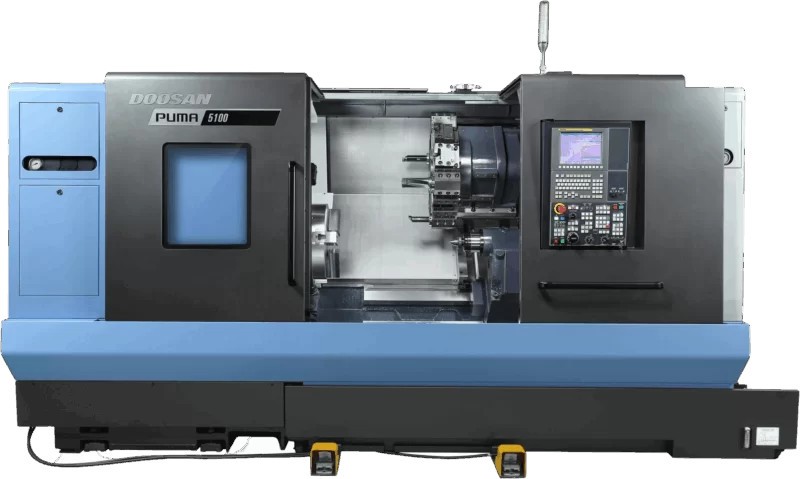

PUMA 5100B

Doosan Puma 5100B Horizontal Single Turret Lathe

Doosan Puma 5100B Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations
21 inch	165.5 mm	650 mm	992 mm	16 / 20 m/min	362 / 1105 mm	1500 r/min	45 kW	4038 N·m	10

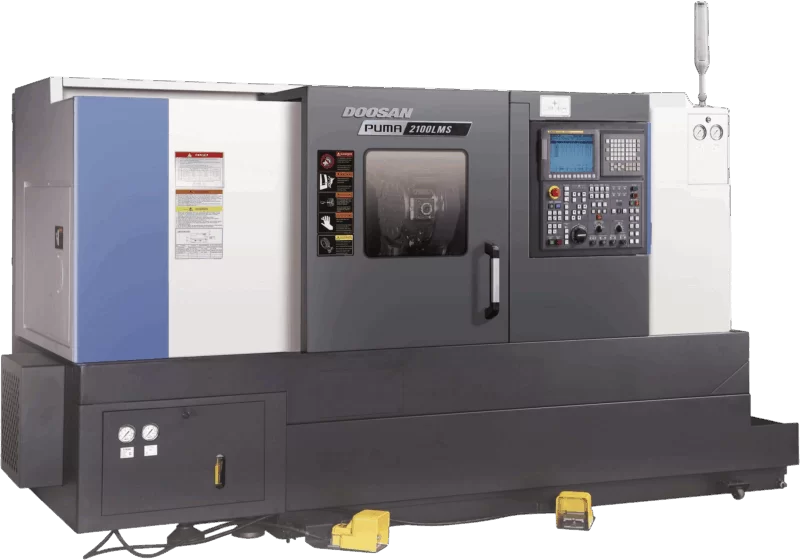

PUMA GT2100

Doosan Puma 2100L Horizontal Single Turret Lathe

Puma GT2100 Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations
8 inch	65 mm	481 mm	545 mm	30 / 30 m/min	260 / 590 mm	4500 r/min	18.5 kW	247 N·m	12

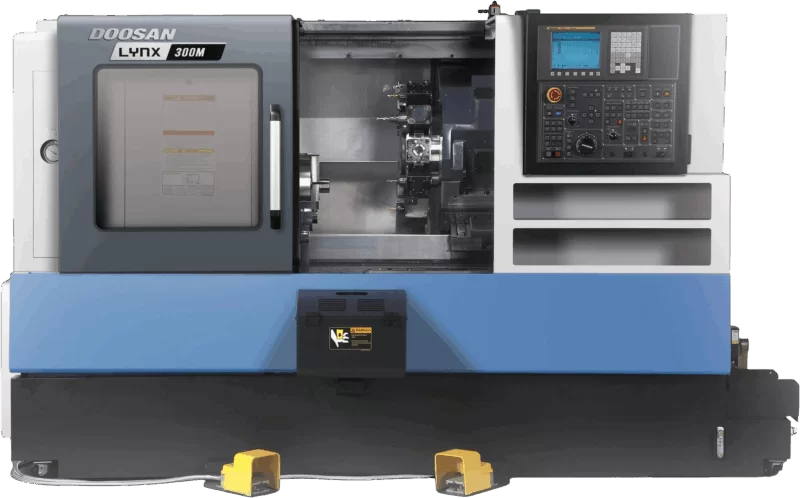

Lynx 300M

Doosan Lynx 300M Horizontal Single Turret Lathe

Lynx 300M Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations	Rotary Tool
10 inch	76 mm	370 mm	712 mm	24 / 30 m/min	255 / 790 mm	3500 r/min	15 kW	191 N·m	12	5000 r/min

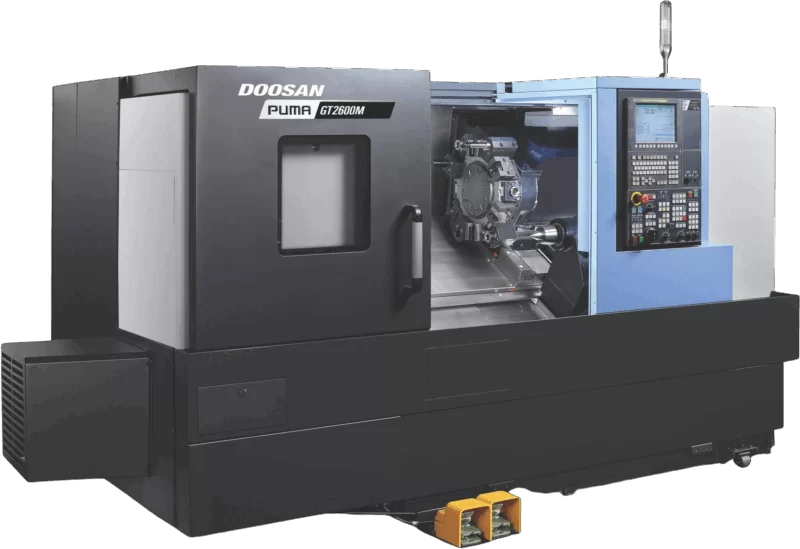

PUMA GT2600L

Doosan Puma GT 2600L Horizontal Single Turret Lathe

Puma GT2600L Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations
12 inch	81 mm	410 mm	610 mm	24 / 30 m/min	265 / 1100 mm	3500 r/min	26 kW	735 N·m	12

PUMA GT2600LM

Doosan Puma GT 2600LM Horizontal Single Turret Lathe

Puma GT2600LM Specification

Chuck	Bar Capacity	Turn Dia. Ø	Max. Turn Length	Rapid Traverse (X/Z)	Travel Distance (X/Z)	Spindle rpm	Spindle Power	Spindle Torque	Tool Stations	Rotary Tool
12 inch	81 mm	410 mm	610 mm	24 / 30 m/min	265 / 1100 mm	3500 r/min	26 kW	735 N·m	12	5000 r/min

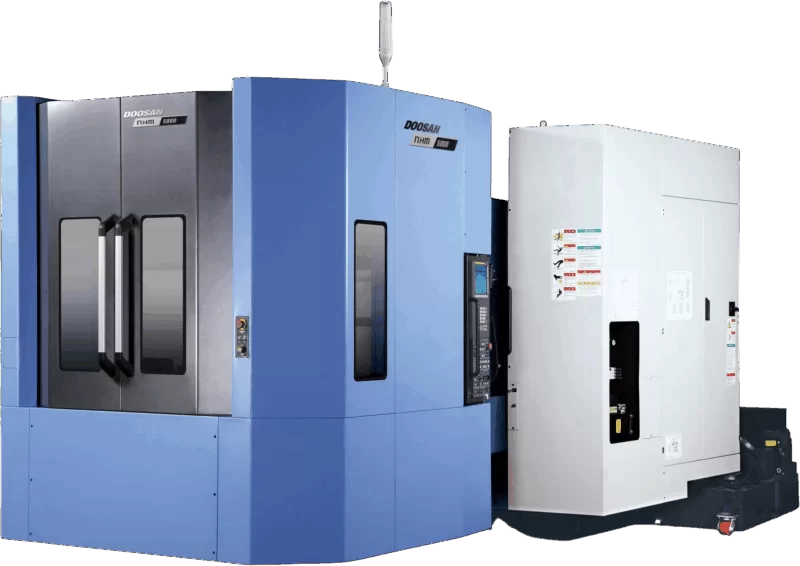

NHM5000 Horizontal Machining Centre

Doosan NHM5000 Specification

No. of Axes	X Axis Travel	Y Axis Travel	Z Axis Travel	Max. Workpiece Dia.	Max. Workpiece Height	Max. Workpiece Weight	Rapid Traverse (X/Y/Z)	Spindle Speed	Spindle Power	Spindle Torque	Pallet Size	Max. Table Weight	Tool Stations
4	800 mm	700 mm	850 mm	850 mm	1100 mm	800 kg	30 / 30 / 30 m/min	6000 r/min	25 kW	1034 N·m	500 mm	800 kg	376

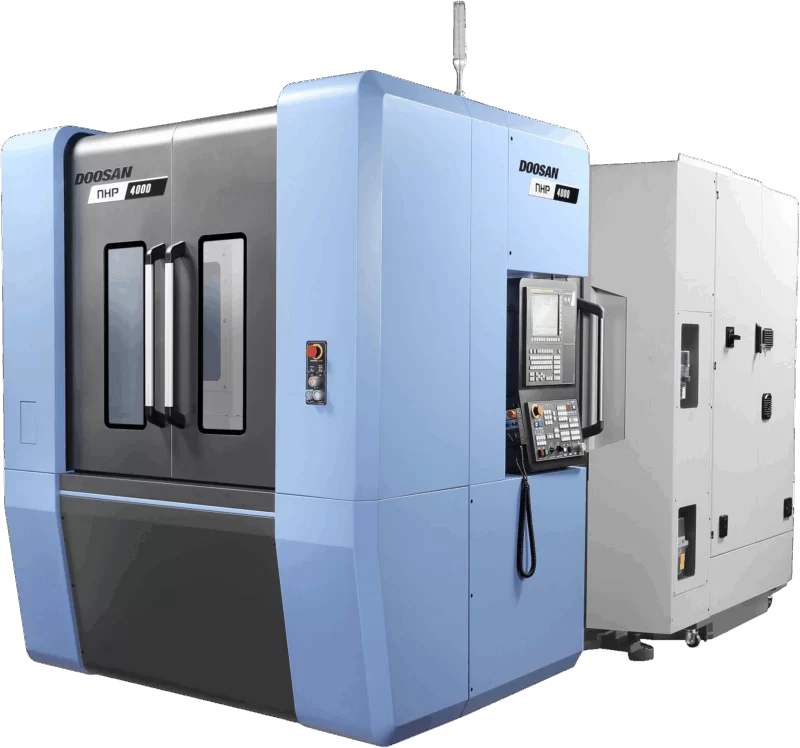

NHP 4000 Horizontal Machining Centre

Doosan NHP4000 Specification

No. of Axes	X Axis Travel	Y Axis Travel	Z Axis Travel	Max. Workpiece Dia.	Max. Workpiece Height	Max. Workpiece Weight	Rapid Traverse (X/Y/Z)	Spindle Speed	Spindle Power	Spindle Torque	Pallet Size	Max. Table Weight	Tool Stations
4	560 mm	640 mm	660 mm	630 mm	900 mm	400 kg	50 / 50 / 50 m/min	10000 r/min	30 kW	229 N·m	400 mm	400 kg	60

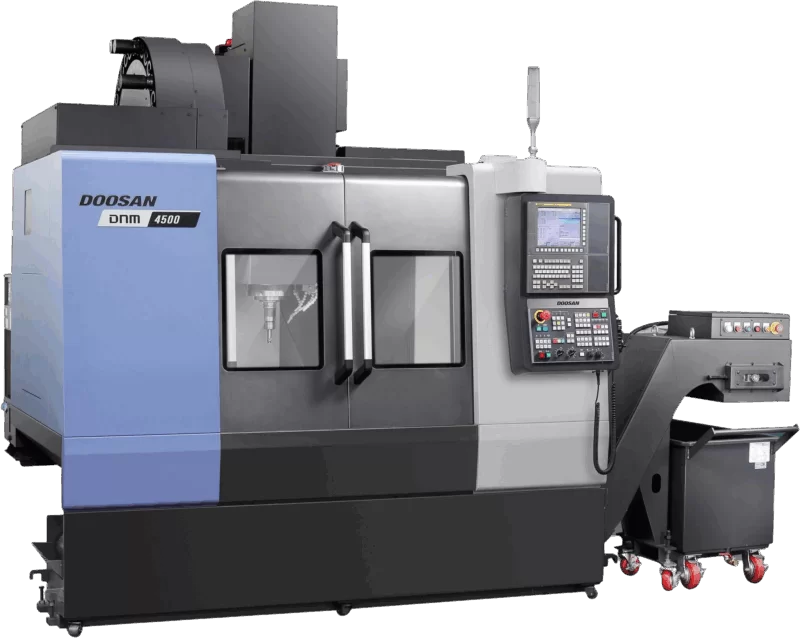

DNM 4500 Vertical Machining Centre

Doosan DNM4500 Specification

No. of Axes	X Axis Travel	Y Axis Travel	Z Axis Travel	Rapid Traverse (X/Y/Z)	Spindle Speed	Spindle Power	Spindle Torque	Table Length	Table Width	Max. Table Weight	Tool Stations
4	800 mm	450 mm	510 mm	36 / 36 / 30 m/min	12000 r/min	18.5 kW	117.8 N·m	1000 mm	450 mm	600 kg	30

DNM 4500II Vertical Machining Centre

Doosan DNM4500II Specification

No. of Axes	X Axis Travel	Y Axis Travel	Z Axis Travel	Rapid Traverse (X/Y/Z)	Spindle Speed	Spindle Power	Spindle Torque	Table Length	Table Width	Max. Table Weight	Tool Stations
4	800 mm	450 mm	510 mm	36 / 36 / 30 m/min	12000 r/min	18.5 kW	117.8 N·m	1000 mm	450 mm	600 kg	30

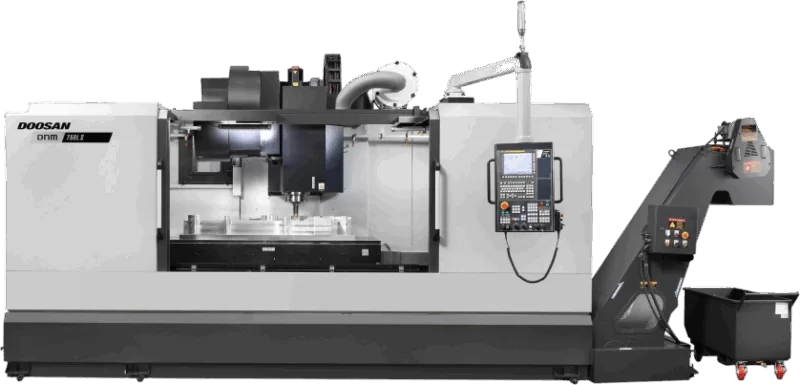

DNM 750L II Vertical Machining Centre

Doosan DNM750L II Specification

No. of Axes	X Axis Travel	Y Axis Travel	Z Axis Travel	Rapid Traverse (X/Y/Z)	Spindle Speed	Spindle Power	Spindle Torque	Table Length	Table Width	Max. Table Weight	Tool Stations
4	2160 mm	762 mm	650 mm	24 / 24 / 24 m/min	12000 r/min	18.5 kW	118 N·m	2160 mm	760 mm	1800 kg	30

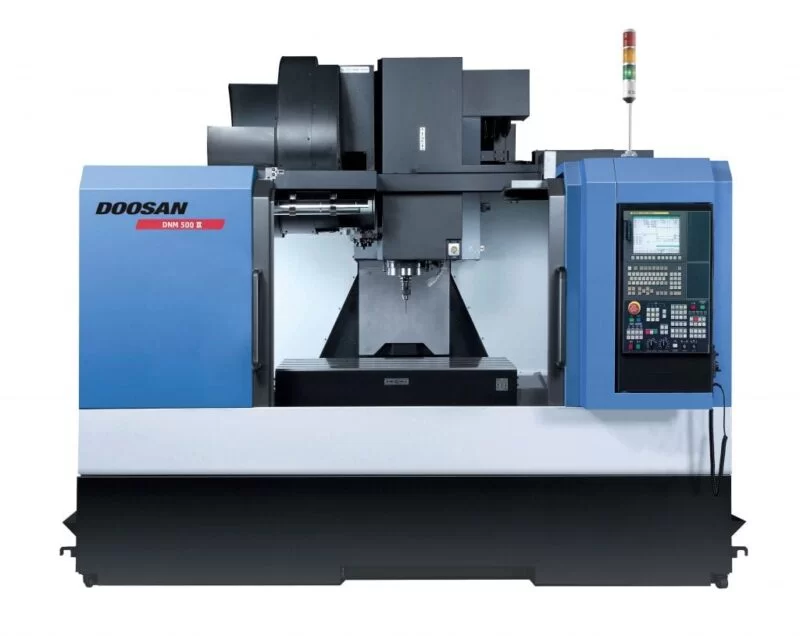

DNM 500 Vertical Machining Centre

Doosan DNM500 Specification

No. of Axes	X Axis Travel	Y Axis Travel	Z Axis Travel	Rapid Traverse (X/Y/Z)	Spindle Speed	Spindle Power	Spindle Torque	Table Length	Table Width	Max. Table Weight	Tool Stations
4	1020 mm	540 mm	510 mm	36 / 36 / 30 m/min	12000 r/min	18.5 kW	353.2 N·m	12000 mm	540 mm	800 kg	24

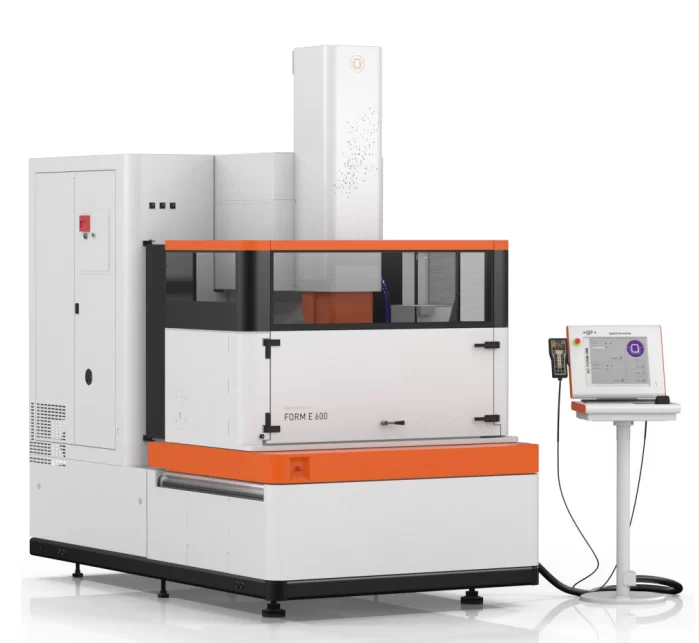

GF FORM E-600 EDM Spark Erode

GF Form E-600 Specification

X Axis Travel	Y Axis Travel	Z Axis Travel	X Axis Inside Dimensions	Y Axis Inside Dimensions	Z Axis Inside Dimensions	Max Electrode Weight	Number of Electrodes	Max Electrode Dimensions	Max Electrode Length	Max Weight (Single Electrode)
800 mm	600 mm	600 mm	1227 mm	800 mm	530 mm	25 kg	6	75 × 75 mm	280 mm	5 kg

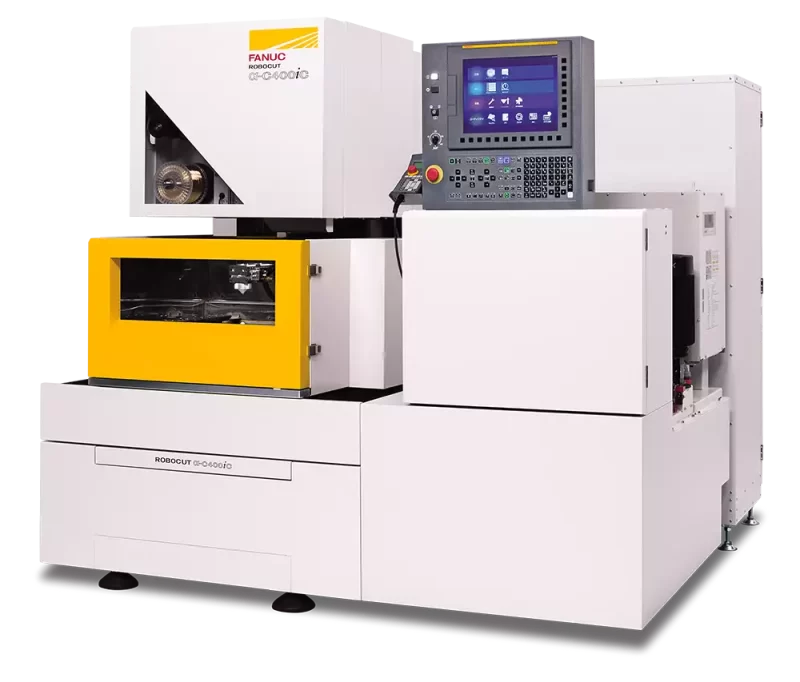

Fanuc Robocut C400iC

Fanuc Robocut C400iC Specification

X Axis Travel	Y Axis Travel	Z Axis Travel	X Axis Inside Dimensions	Y Axis Inside Dimensions	Z Axis Inside Dimensions	Max Workpiece Weight	Wire Diameter	Max Taper Angle
400 mm	300 mm	255 mm	730 mm	630 mm	250 mm	500 kg	Ø 0.10 – Ø 0.30 mm	(±30)°

FANUC ROBOCUT 0iC

Fanuc Robocut 0iC Specification

X Axis Travel	Y Axis Travel	Z Axis Travel	X Axis Inside Dimensions	Y Axis Inside Dimensions	Z Axis Inside Dimensions	Max Workpiece Weight	Wire Diameter	Max Taper Angle
320 mm	220 mm	255 mm	730 mm	630 mm	255 mm	500 kg	Ø 0.10 – Ø 0.30 mm	0°

GF AGIE CHARMILLES DRILL 11

GF Agie Charmilles Drill 11 Specification

X Axis Travel	Y Axis Travel	Z Axis Travel	X Axis Inside Dimensions	Y Axis Inside Dimensions	Z Axis Inside Dimensions	Max Workpiece Weight	Wire Diameter	Max Taper Angle
300 mm	200 mm	300 mm	500 mm	350 mm	300 mm	100 kg	3 mm	N/A

Ancillary Equipment

Hydmech H-18 Automatic Saw: Max Sawing Ø457mm
Daewoo G20 3.0 Tonne Forklift Truck
Jib Cranes up to 1000kg Lift Capacity (Qty 9)
Propen P5000 Benchtop Marking Machine
Telesis TMC 420 Portable Marking Machine
Guyson Euroblast 8 Bead Blasting Cabinet
Zinc Phosphate Line
Material Storage up to 6m in Length

Inspection Equipment

Aberlink Axiom Too CNC CMM: 600mm x 640mm x 500mm
Sylvac Scan 52 Laser Scanning Machine
Avery Rockwell Hardness Tester
Gagemaker Thread Measuring Equipment
Trimos V4 700mm Height Gauge
Shadowgraph with 3 Axis Digital Readout
Mitutoyo SJ-410 Surface Tester
Gagemaker Software for Tapered Thread Dimensions
